A simplified version of a cost function and gradient descent

Now the system must train. To do that, we need to measure the number of predictions, 1 to 4, that are correct at each iteration and decide how to change the weights/biases until we obtain proper results.

A slightly more complex gradient descent will be described in the next chapter. In this chapter, only a one-line equation will do the job. The only thing to bear in mind as an unconventional thinker is: so what? The concept of gradient descent is minimizing loss or errors between the present result and a goal to attain.

First, a cost function is needed.

There are four predicates (0-0, 1-1, 1-0, 0-1) to train correctly. We simply need to find out how many are correctly trained at each epoch.

The cost function will measure the difference between the training goal (4) and the result of this epoch or training iteration (result).

When 0 convergence is reached, it means the training has succeeded.

result[0,0,0,0] contains a 0 for each value if none of the four predicates has been trained correctly. result[1,0,1,0] means two out of four predicates are correct. result[1,1,1,1] means that all four predicates have been trained and that the training can stop. 1, in this case, means that the correct training result was obtained. It can be 0 or 1. The result array is the result counter.

The cost function will express this training by having a value of 4, 3, 2, 1, or 0 as the training goes down the slope to 0.

Gradient descent measures the value of the descent to find the direction of the slope: up, down, or 0. Then, once you have that slope and the steepness of it, you can optimize the weights. A derivative is a way to know whether you are going up or down a slope.

In this case, I hijacked the concept and used it to set the learning rate with a one-line function. Why not? It helped to solve gradient descent optimization in one line:

if(convergence<0):w2+=0.05;b1=w2

By applying the vintage children buying candy logic to the whole XOR problem, I found that only w2 needed to be optimized. That's why b1=w2. That's because b1 is doing the tough job of saying something negative (-) all the time, which completely changes the course of the resulting outputs.

The rate is set at 0.05, and the program finishes training in 10 epochs:

epoch: 10 optimization 0 w1: 0.5 w2: 1.0 w3: 1.0 w4: 0.5 b1: -1.0 b2: 1.0

This is not a mathematical calculation problem but a logical one, a yes or no problem. The way the network is built is pure logic. Nothing can stop us from using whatever training rates we wish. In fact, that's what gradient descent is about. There are many gradient descent methods. If you invent your own and it works for your solution, that is fine.

This one-line code is enough, in this case, to see whether the slope is going down. As long as the slope is negative, the function is going downhill to cost = 0:

convergence=sum(result)-train #estimating the direction of the slope
if(convergence>=-0.00000001): break

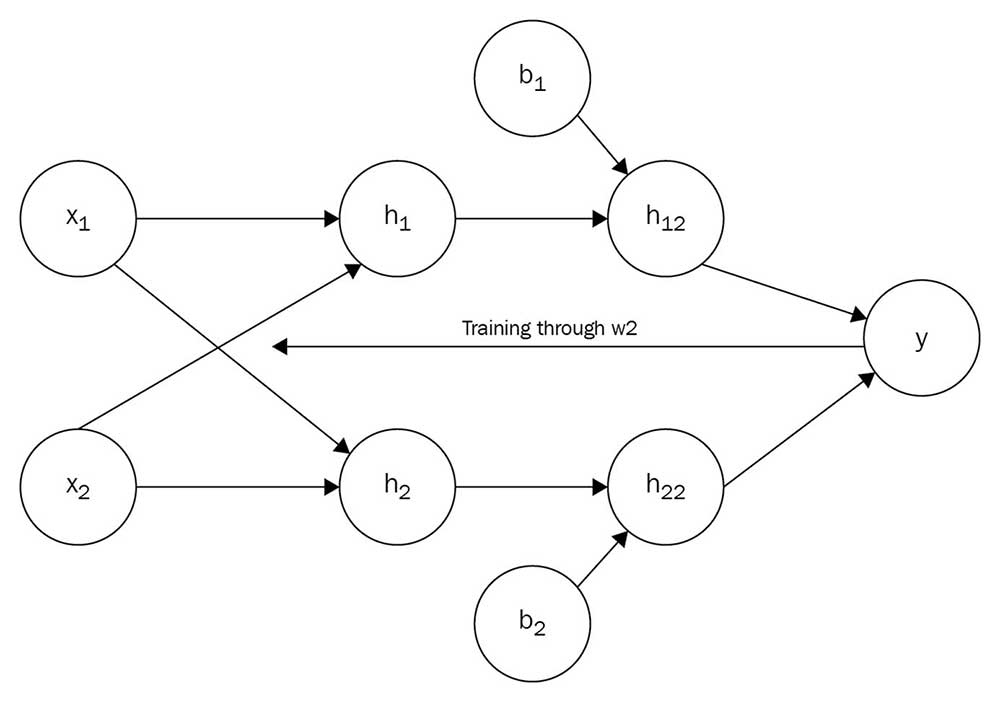

The following graph sums up the whole process:

Too simple? Well, it works, and that's all that counts in real-life development. If your code is bug-free and does the job, then that's what counts.

Finding a simple development tool means nothing more than that. It's just another tool in the toolbox. We can get this XOR function to work on a neural network and generate income.

Companies are not interested in how smart you are but how efficient (profitable) you can be.
