Custom TextBox

We’ll start with the name data item of our client. Back when we worked with another QString property in our UI with the welcome message, we displayed it with the basic text component. This component is read only, so to view and edit our property, we will need to reach for something else. There are a couple of options in the base QtQuick module: TextInput and TextEdit. TextInput is for a single line of editable plain text, while TextEdit handles multiline blocks of text and also supports rich text. TextInput is ideal for our name.

Importing the QtQuick.Controls module makes additional text-based components like Label, TextField, and TextArea available. Label inherits and extends Text, TextField inherits and extends TextInput and TextArea inherits and extends TextEdit. The basic controls are enough for us at this stage, but be aware that these alternatives exist. If you find yourself trying to do something with one of the basic controls which it doesn’t seem to support, then import QtQuick.Controls and take a look at its more powerful cousin. It may well have the functionality you are looking for.

Let's build on what we've learned and create a new reusable component. As usual, we'll begin by preparing the Style properties we'll need:

readonly property real sizeScreenMargin: 20

readonly property color colourDataControlsBackground: "#ffffff"
readonly property color colourDataControlsFont: "#131313"
readonly property int pixelSizeDataControls: 18
readonly property real widthDataControls: 400
readonly property real heightDataControls: 40

Next, create StringEditorSingleLine.qml in cm/cm-ui/components. It’s not the most beautiful of names, but at least it’s descriptive!

It's generally helpful to use a prefix with custom QML views and components to help distinguish them from the built-in Qt components and avoid naming conflicts. If we were using that approach with this project, we could have called this component CMTextBox or something equally short and simple. Use whatever approach and conventions work for you, it makes no functional difference.

Edit components.qrc and qmldir as we did previously to make the new component available in our components module.

What we're trying to achieve with this component is as follows:

To be able to pass in any StringDecorator property from any data model and view/edit the value
View a descriptive label for the control as defined in the ui_label property of the StringDecorator
View/edit the ui_value property of the StringDecorator in a TextBox
If the window is wide enough, then the label and textbox are laid out horizontally
If the window is not wide enough, then the label and textbox are laid out vertically

With these goals in mind, implement StringEditorSingleLine, as follows:

import QtQuick 2.9
import CM 1.0
import assets 1.0

Item {
 property StringDecorator stringDecorator

 height: width > textLabel.width + textValue.width ?
 Style.heightDataControls : Style.heightDataControls * 2

 Flow {
 anchors.fill: parent

 Rectangle {
 width: Style.widthDataControls
 height: Style.heightDataControls
 color: Style.colourBackground
 Text {
 id: textLabel
 anchors {
 fill: parent
 margins: Style.heightDataControls / 4
 }
 text: stringDecorator.ui_label
 color: Style.colourDataControlsFont
 font.pixelSize: Style.pixelSizeDataControls
 verticalAlignment: Qt.AlignVCenter
 }
 }

 Rectangle {
 id: background
 width: Style.widthDataControls
 height: Style.heightDataControls
 color: Style.colourDataControlsBackground
 border {
 width: 1
 color: Style.colourDataControlsFont
 }
 TextInput {
 id: textValue
 anchors {
 fill: parent
 margins: Style.heightDataControls / 4
 }
 text: stringDecorator.ui_value
 color: Style.colourDataControlsFont
 font.pixelSize: Style.pixelSizeDataControls
 verticalAlignment: Qt.AlignVCenter
 }
 }

 Binding {
 target: stringDecorator
 property: "ui_value"
 value: textValue.text
 }
 }
}

We begin with a public StringDecorator property (public because it is in the root Item element), which we can set from outside of the component.

We introduce a new kind of element—Flow—to lay out our label and textbox for us. Rather than always laying out content in a single direction like row or column, the Flow item will lay out its child elements side by side until it runs out of available space and then wraps them like words on a page. We tell it how much available space it has to play with by anchoring it to the root Item.

Next comes our descriptive label in a Text control and the editable value in a TextInput control. We embed both controls in explicitly sized rectangles. The rectangles help us align the elements and give us the opportunity to draw backgrounds and borders.

The Binding component establishes a dependency between the properties of two different objects; in our case, the TextInput control called textValue and the StringDecorator instance called stringDecorator. The target property defines the object we want to update, the property is the Q_PROPERTY we want to set, and value is the value we want to set it to. This is a key element that gives us true two-way binding. Without this, we will be able to view the value from the StringDecorator, but any changes we make in the UI will not update the value.

Back in CreateClientView, replace the old Text element with our new component and pass in the ui_name property:

StringEditorSingleLine {
    stringDecorator: newClient.ui_name
}

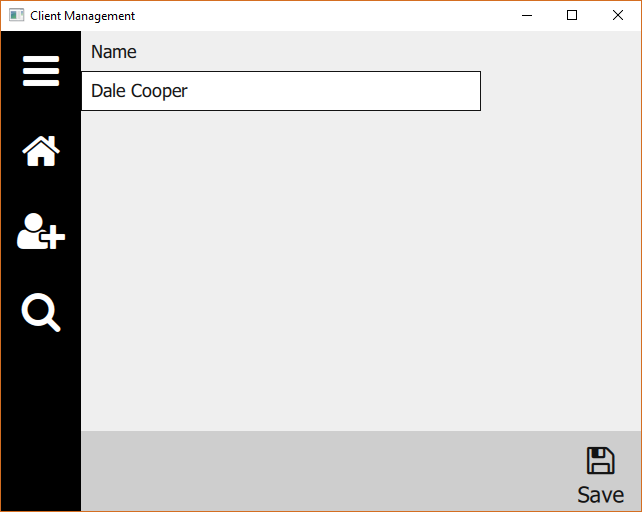

Now build and run the app, navigate to the Create Client view, and try editing the name:

If you switch to the Find Client view and back again, you will see that the value is retained, demonstrating the updates are successfully being set in the string decorator.

Our newly bound view isn't exactly overflowing with data just yet, but over the coming chapters, we will add more and more to this view, so let's add a few finishing touches to prepare us.

Firstly, we only need to add another three or four properties to the view, and we'll run out of space as the default size we’ve set for the window is very small, so in MasterView bump the window size up to something comfortable for your display. I'll treat myself and go full HD at 1920 x 1080.

Even with a larger window to work with, we still need to prepare for the possibility of overflow, so we'll add our content to another new element called ScrollView. As its name suggests, it works in a similar way to flow and manages its content based on the space it has available to it. If the content exceeds the available space, it will present scrollbars for the user. It's also a very finger friendly control and on a touch screen, the user can just drag the content rather than having to fiddle around with a tiny scrollbar.

Although we only have one property currently, when we add more, we will need to lay them out so we'll add a column.

Finally, the controls are stuck to the bounds of the view, so we'll add a little gutter around the view and some spacing in the column.

The revised view should look as follows:

import QtQuick 2.9
import QtQuick.Controls 2.2
import CM 1.0
import assets 1.0
import components 1.0

Item {
    property Client newClient: masterController.ui_newClient

    Rectangle {
        anchors.fill: parent
        color: Style.colourBackground
    }

    ScrollView {
        id: scrollView
        anchors {
            left: parent.left
            right: parent.right
            top: parent.top
            bottom: commandBar. top
            margins: Style.sizeScreenMargin
        }
        clip: true
        Column {
            spacing: Style.sizeScreenMargin
            width: scrollView.width
            StringEditorSingleLine {
                stringDecorator: newClient.ui_name
                anchors {
                    left: parent.left
                    right: parent.right
                }
            }
        }
    }

    CommandBar {
        id: commandBar
        commandList: masterController.ui_commandController.ui_createClientViewContextCommands
    }
}

Build and run, and you should see the nice neat screen margin. You should also be able to resize the window from wide to narrow and see the string editor automatically adjust its layout accordingly.
